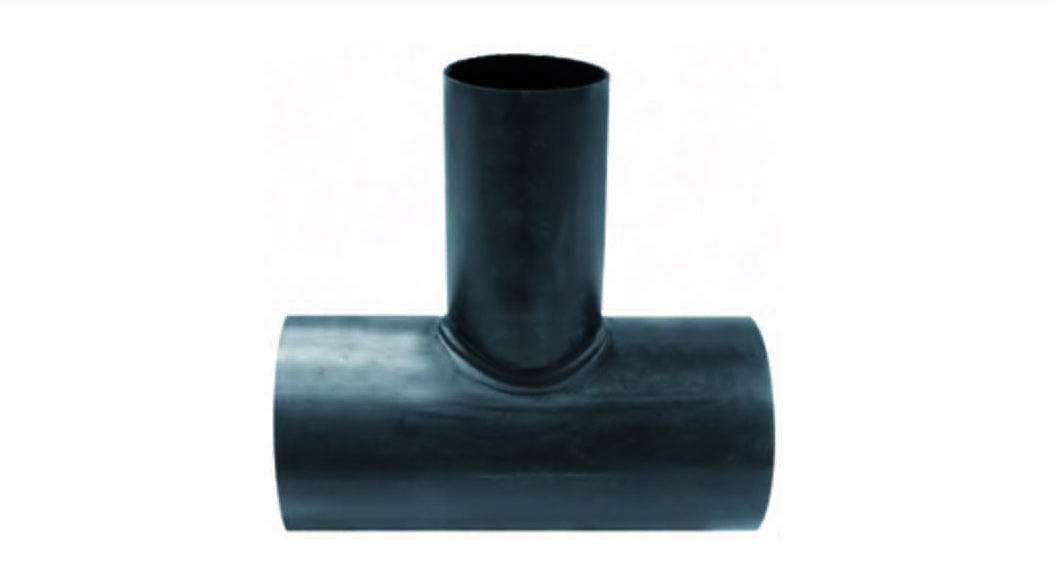

Mufy odgałęzienia
Opis

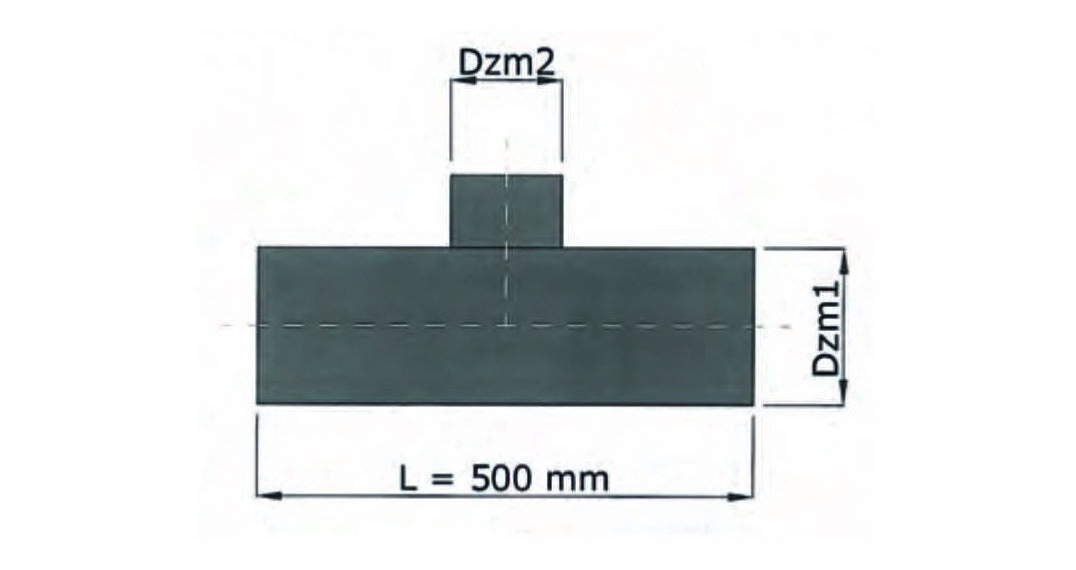

Dzm1, Dzm2 – wartości średnic dobieramy zgodnie z tabelą dla muf termokurczliwych
Dane techniczne
| Typ mufy odgałęźnej |
HDPE Dz rury głównej |
Dz rury odgałęźnej | ||||||||||||||
| 90 | 110 | 125 | 140 | 160 | 180 | 200 | 225 | 250 | 315 | 400 | 450 | 500 | 560 | 630 | ||
| M-OD90/X | 90 | x | ||||||||||||||
| M-OD110/X | 110 | x | x | |||||||||||||
| M-OD125/X | 125 | x | x | x | ||||||||||||
| M-OD140/X | 140 | x | x | x | x | |||||||||||
| M-OD160/X | 160 | x | x | x | x | x | ||||||||||
| M-OD180/X | 180 | x | x | x | x | x | x | |||||||||
| M-OD200/X | 200 | x | x | x | x | x | x | x | ||||||||
| M-OD225/X | 225 | x | x | x | x | x | x | x | x | |||||||
| M-OD250/X | 250 | x | x | x | x | x | x | x | x | x | ||||||
| M-OD315/X | 315 | x | x | x | x | x | x | x | x | x | x | |||||
| M-OD400/X | 400 | x | x | x | x | x | x | x | x | x | x | x | ||||
| M-OD450/X | 450 | x | x | x | x | x | x | x | x | x | x | x | x | |||
| M-OD500/X | 500 | x | x | x | x | x | x | x | x | x | x | x | x | x | ||
| M-OD560/X | 560 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | |
| M-OD630/X | 630 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | |
| M-OD710/X | 710 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
