Trójniki proste
Opis
Trójniki proste standardowo produkowane o wymiarach 1,5x1m.
Średnice i grubości ścianek nieujęte w tabeli – na zapytanie.
Dane techniczne

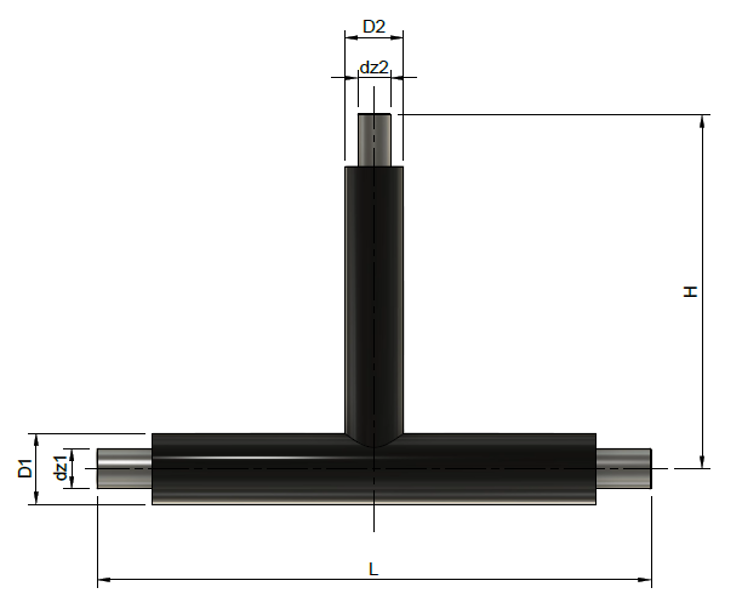

Trójniki proste preizolowane w izolacji STANDARD / PLUS / 2xPLUS
| Rura główna | Rura odgałęźna | |||||||||||||||||||||||
| dz2 | 26,9 | 33,7 | 42,4 | 48,3 | 60,3 | 76,1 | 88,9 | 114,3 | 139,7 | 168,3 | 219,1 | 273 | 323,9 | 355,6 | 406,4 | 457 | 508 | 610 | 711 | |||||
| DN | dz1 | D1 | L | STANDARD PLUS 2xPLUS |
D2 | 90 110 125 |
90 110 125 |
110 125 140 |
110 125 140 |
125 140 160 |
140 160 180 |
160 180 200 |
200 225 250 |
225 250 280 |
250 280 315 |
315 355 400 |
400 450 500 |
450 500 560 |
500 560 630 |
560 630 710 |
630 710 |
710 800 |
800 900 |
900 |
| 20 | 26,9 | 90 110 125 |
1500 | H | 1000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 25 | 33,7 | 90 110 125 |
1500 | H | 1000 | 1000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 32 | 42,4 | 110 125 140 |
1500 | H | 1000 | 1000 | 1000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 40 | 48,3 | 110 125 140 |
1500 | H | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 50 | 60,3 | 125 140 160 |
1500 | H | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 65 | 76,1 | 140 160 180 |
1500 | H | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 80 | 88,9 | 160 180 200 |
1500 | H | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 100 | 114,3 | 200 225 250 |
1500 | H | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | – | – | – | – | – | – | |
| 125 | 139,7 | 225 250 280 |
1500 | H | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | – | – | – | – | – | |
| 150 | 168,3 | 250 280 315 |
1500 | H | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | – | – | – | – | |
| 200 | 219,1 | 315 355 400 |
1500 | H | – | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | – | – | – | |
| 250 | 273 | 400 450 500 |
1500 | H | – | – | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | – | – | |
| 300 | 323,9 | 450 500 560 |
1500 | H | – | – | – | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | – | |
| 350 | 355,6 | 500 560 630 |
1500 | H | – | – | – | – | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | – | |
| 400 | 406,4 | 560 630 710 |
1500 | H | – | – | – | – | – | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | – | |
| 450 | 457 | 630 710 |
1500 | H | – | – | – | – | – | – | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | – | |
| 500 | 508 | 710 800 |
1500 | H | – | – | – | – | – | – | – | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | – | |
| 600 | 610 | 800 900 |
1500 | H | – | – | – | – | – | – | – | – | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | – | |
| 700 | 711 | 900 | 1500 | H | – | – | – | – | – | – | – | – | – | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
Trójniki proste standardowo produkowane o wymiarach 1,5x1m.
Średnice i grubości ścianek nieujęte w tabeli – na zapytanie.
Produkt dostępny jest również w poniższych opcjach:
-
W system naziemnym UVprotect Color®
-
Z barierą dyfuzyjną EVOprotect®
-
W płaszczu osłonowym GreenID®
