RC MAXIprotect®PE/PP-d pipes intended for gas
Description

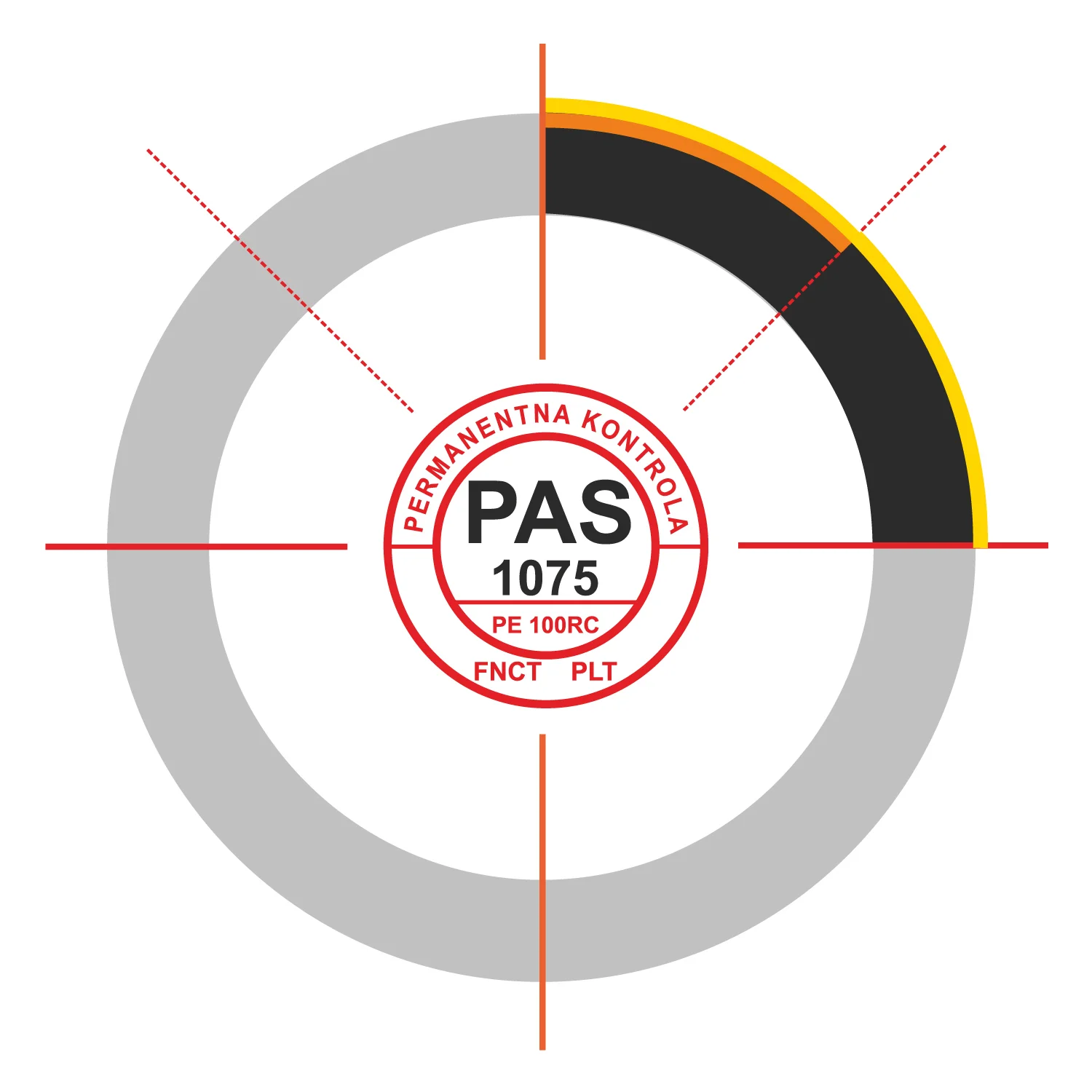

RC MAXIprotect®PE/PP-d pipes intended for gas with additional PE or PP protective coat and detection tape (type 3 – in accordance with PAS :1075 2009 04.)
Technical data

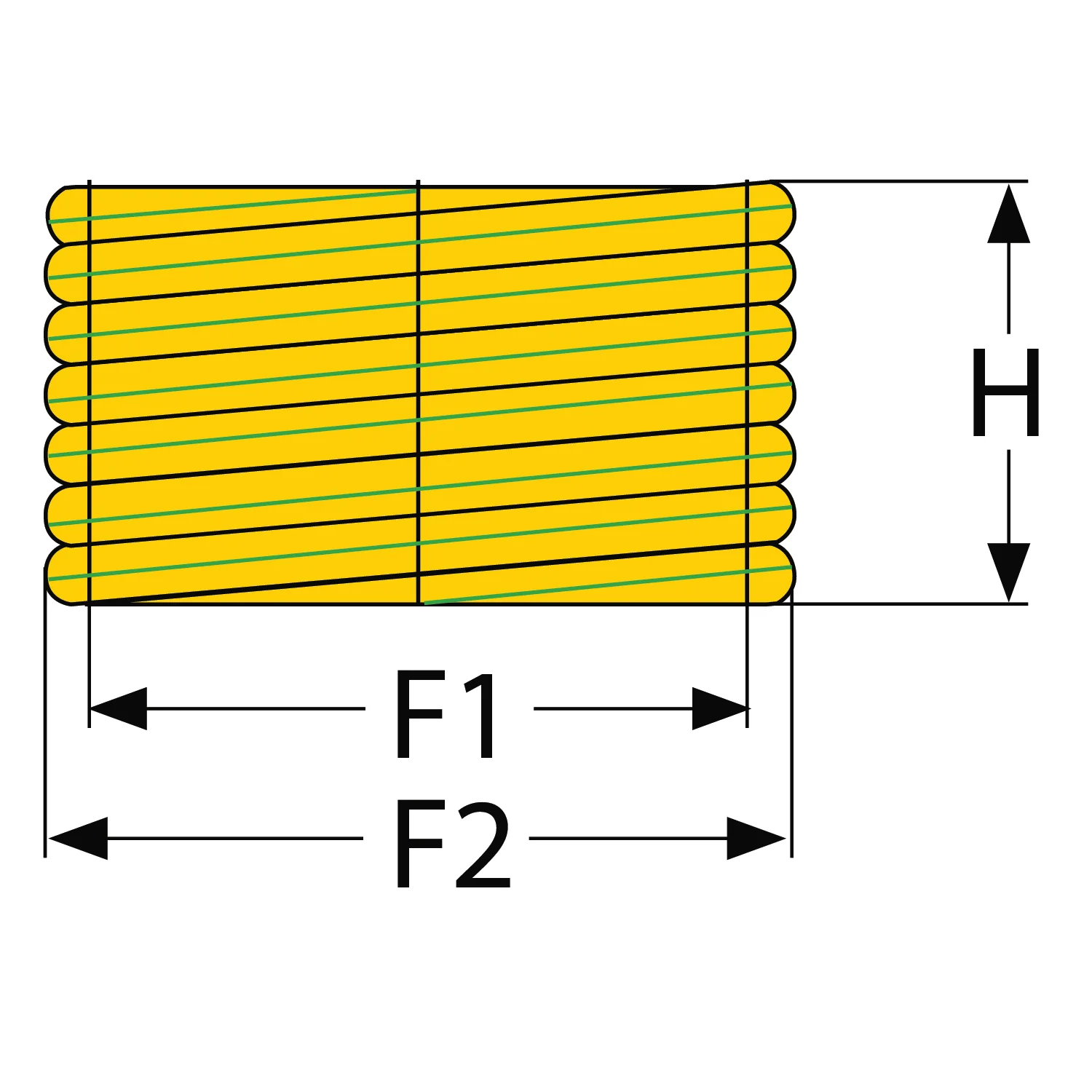

RC MAXIprotect®PE/PP-d pipes intended for gas – coils
|

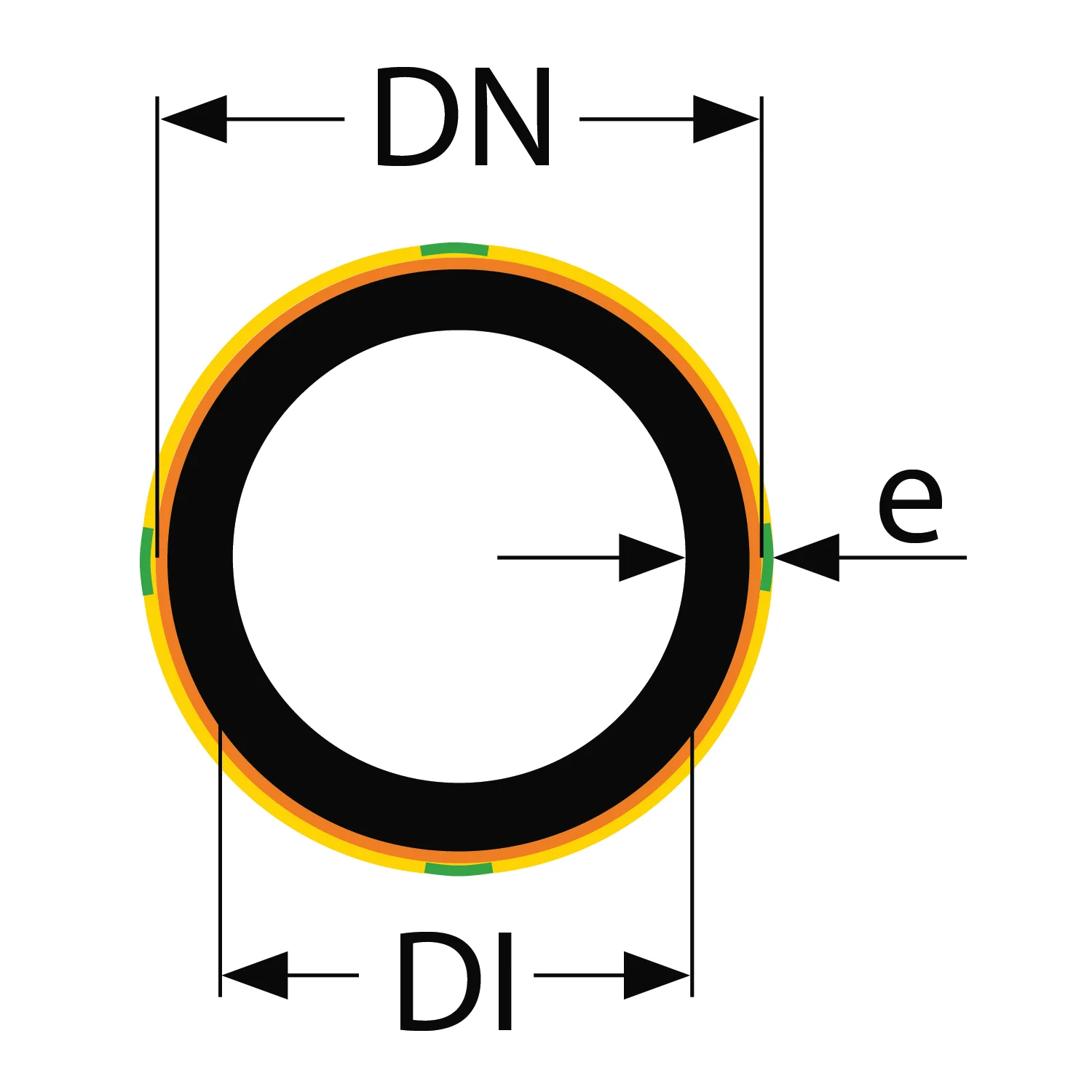

Diameter |
Wall thickness |
Wall thickness |
Wall thickness |
Quantity |
|
[mm] |
[mm] |
[mm] |
[mm] |
[mb] |
|
25 |
2,3 |
2,3 |
2,3 |
200 |
|
32 |
3,0 |
2,3 |
2,3 |
200 |
|
40 |
3,7 |
2,4 |
2,3 |
200 |
|
50 |
4,6 |
3,0 |
2,9 |
100 |
|
63 |
5,8 |
3,8 |
3,6 |
100 |
|
75 |
6,8 |
4,5 |
4,3 |
100 |
|
90 |
8,2 |
5,4 |
5.2 |
100 |
|
110 |
10,0 |
6,6 |
6,3 |
50 |

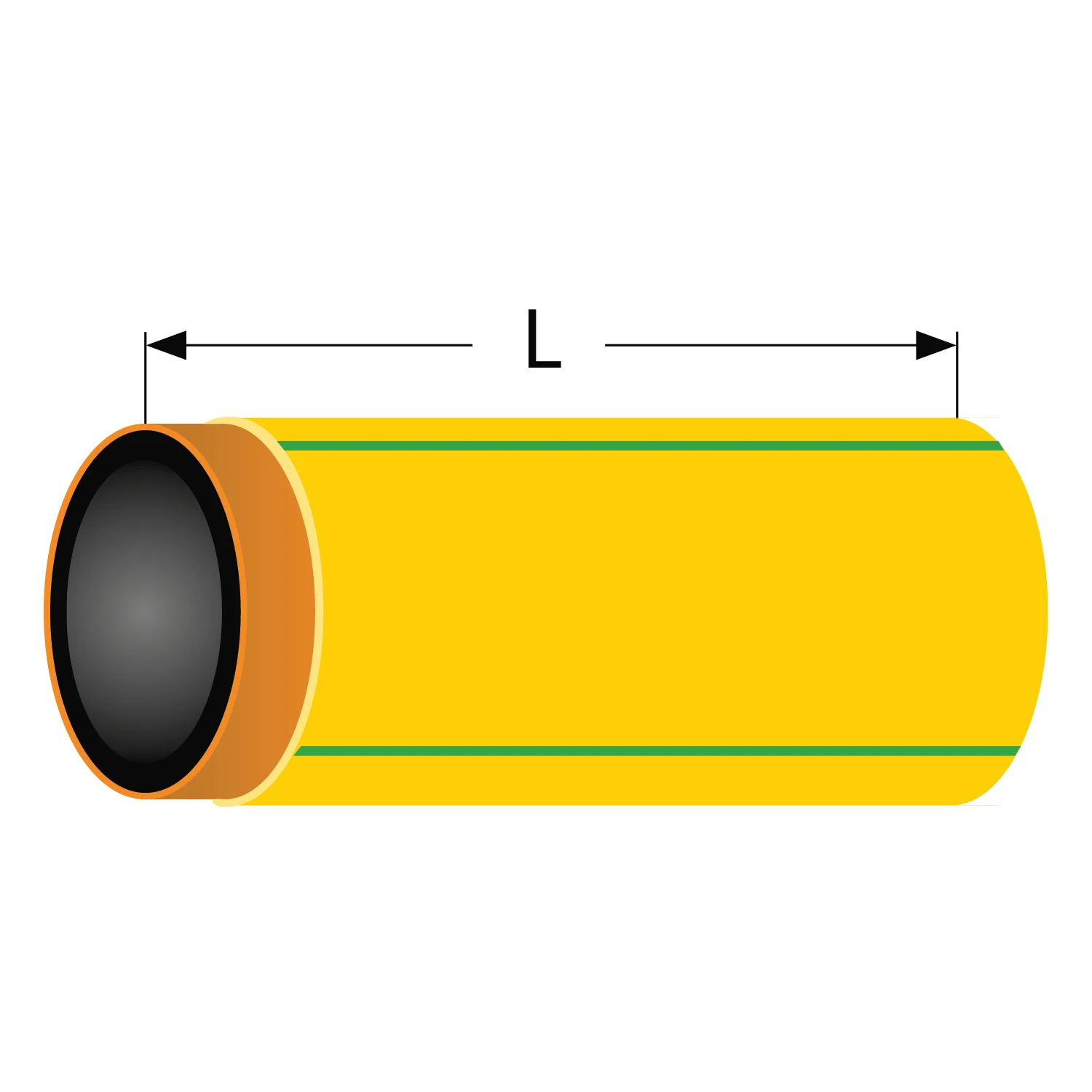

RC MAXIprotect®PE/PP-d pipes intended for gas – sections and 12 mb
|
Diameter |
Wall thickness |
Wall thickness |
Wall thickness |
Quantity |
|
[mm] |
[mm] |
[mm] |
[mm] |
[mb] |
|
90 |
8,2 |
5.4 |
5.2 |
384 |
|
110 |
10,0 |
6,6 |
6,3 |
312 |
|
125 |
11,4 |
7,4 |
7,1 |
276 |
|
140 |
12,7 |
8,3 |
8,0 |
240 |
|
160 |
14,6 |
9,5 |
9,1 |
204 |
|
180 |
16,4 |
10,7 |
10,3 |
120 |
|
200 |
18,2 |
11,9 |
11,4 |
120 |
|
225 |
20,5 |
13,4 |
12,8 |
96 |
|
250 |
22,7 |
14,8 |
14,2 |
72 |
|
280 |
25,4 |
16,6 |
15,9 |
36 |
|
315 |
28,6 |
18,7 |
17,9 |
36 |
|
355 |
32,3 |
21,1 |
20,2 |
36 |
|
400 |
36,4 |
23,7 |
22,8 |
24 |
|
450 |
41,0 |
26,7 |
25,6 |
24 |
|
500 |
45,5 |
29,7 |
28,4 |
24 |
|
560 |
50,9 |
33,2 |
31,9 |
24 |
|
630 |
57,3 |
37,4 |
35,8 |
24 |
