RC MULTIsafe®3L pipes for tap water (sewage system) with PE 100 RC
Description
Three-ply RC MULTIsafe®3L pipes (middle ply in black and both outermost plies in green with thickness from 10% to 30%, where the outermost internal ply is at least 2,5mm thick – type 2 – in accordance with PAS 1075:2009.04) intended for tap water (sewage system) are manufactured with diameters from 90 to 500 mm.
Technical data

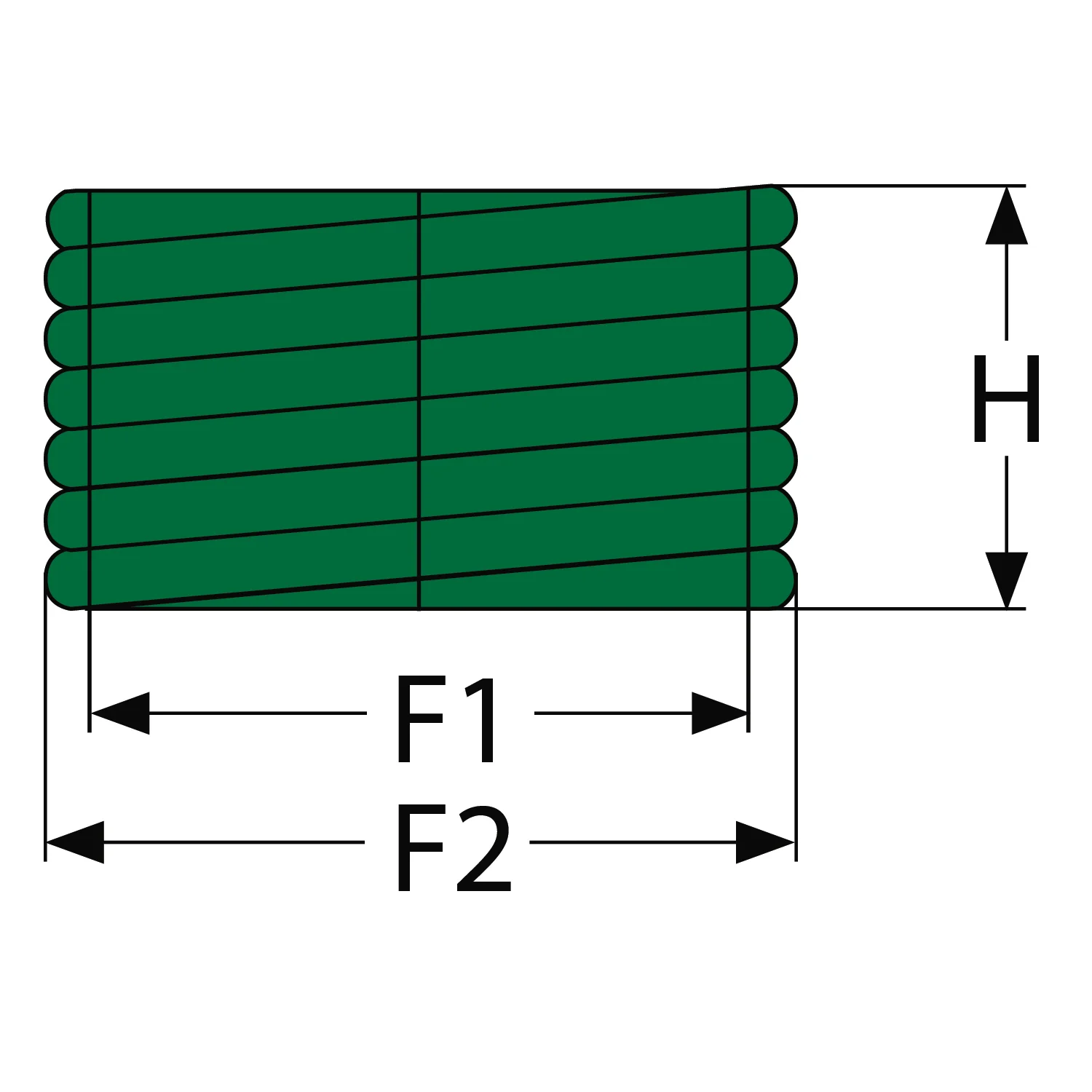

RC MULTIsafe®3L pipes for tap water – coils
|
DN |
Wall thickness |
Wall thickness |
Quantity |
|
[mm] |
[mm] |
[mm] |
[mb] |
|
90 |
8,2 |
5,4 |
100 |
|
110 |
10,0 |
6,6 |
50 |

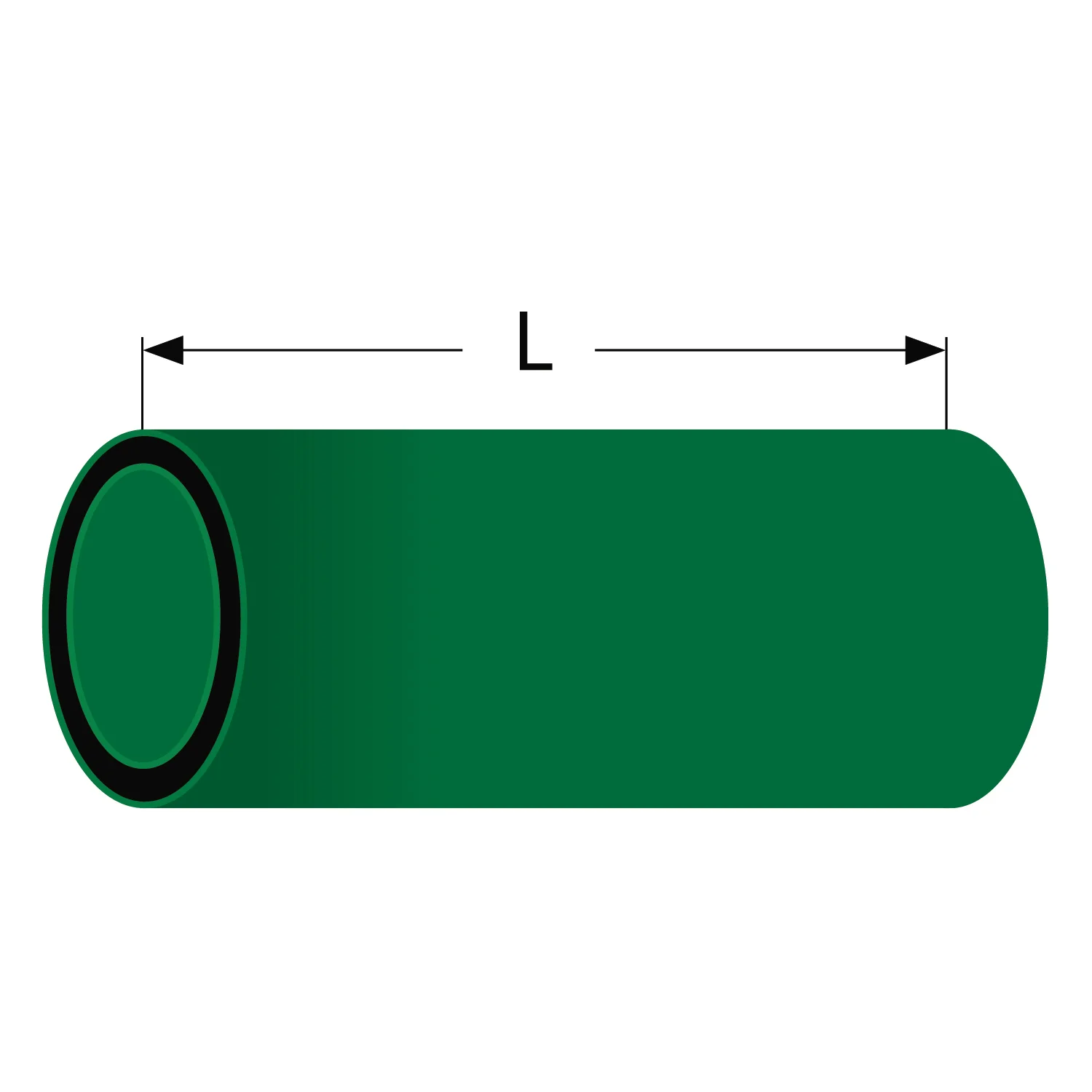

RC MULTIsafe®3L pipes for tap water – sections and 12 mb
|

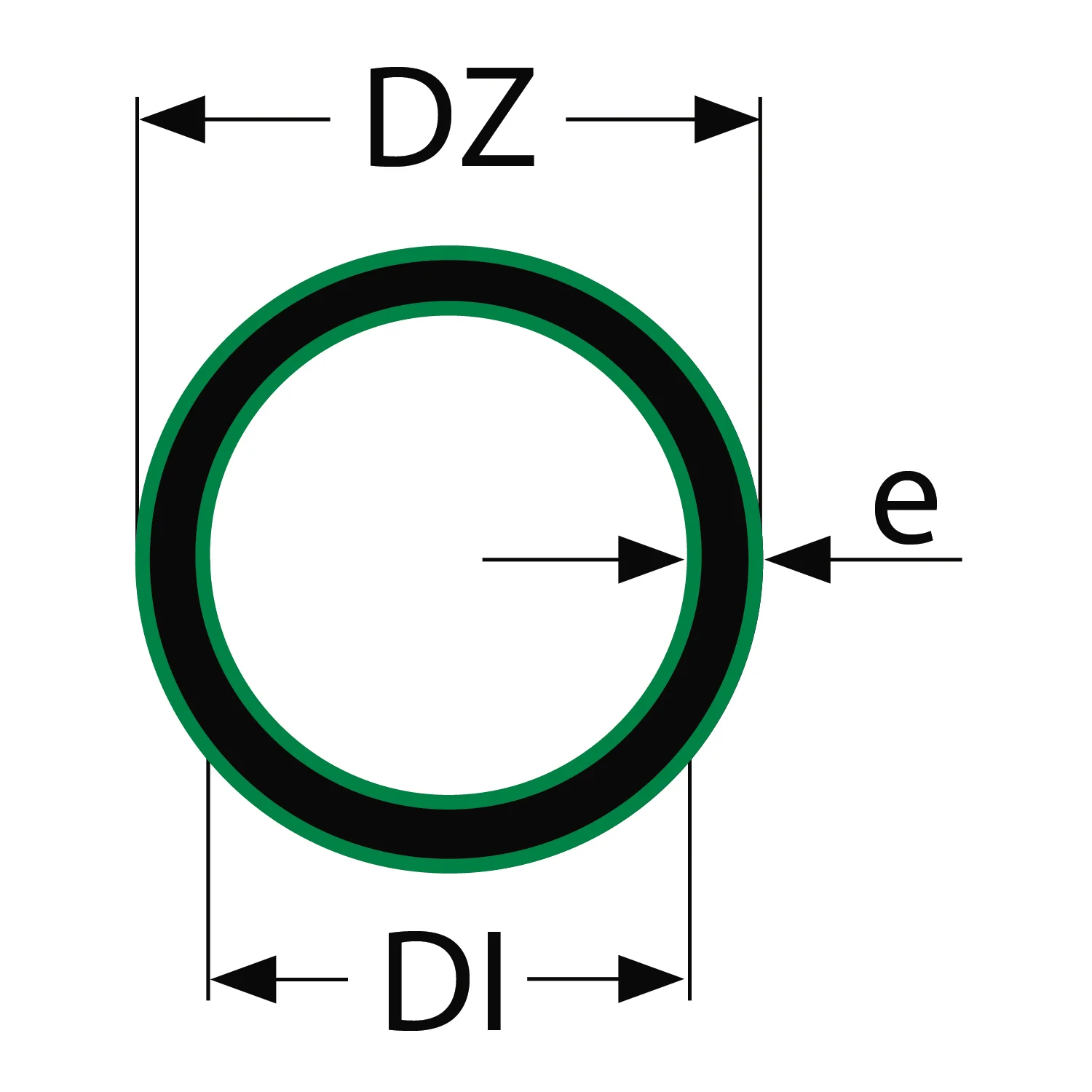

DN |
Wall thickness |
Wall thickness |
Quantity |
|
[mm] |
[mm] |
[mm] |
[mb] |
|
90 |
8,2 |
5,4 |
384 |
|
110 |
10,0 |
6,6 |
312 |
|
125 |
11,4 |
7,4 |
276 |
|
140 |
12,7 |
8,3 |
240 |
|
160 |
14,6 |
9,5 |
204 |
|
180 |
16,4 |
10,7 |
120 |
|
200 |
18,2 |
11,9 |
120 |
|
225 |
20,5 |
13,4 |
96 |
|
250 |
22,7 |
14,8 |
72 |
|
280 |
25,4 |
16,6 |
36 |
|
315 |
28,6 |
18,7 |
36 |
|
355 |
32,3 |
21,1 |
36 |
|
400 |
36.4 |
23,7 |
24 |
|
450 |
41,0 |
26,7 |
24 |
|
500 |
45,5 |
29,7 |
24 |
